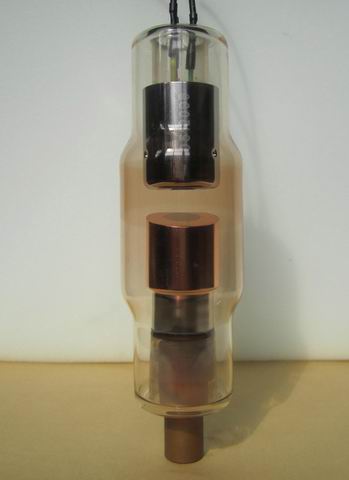

medical x-ray tube


Share to:
sharethis sharing button
  • Model: CT05
Category   Medical Tube
Description   Medical Diagnosis Tube
Model No.   CT05-0.5,3.5/125
Equipment Applied To   Medical Diagnostic X-ray Machine
Max Operating Voltage  kv  125
Nominal Focal Spot Value mm 0.6/1.5
Max Continuous Tube Current Ma 2
Max Moment Power  kw 0.5/4
Target Angle   12°
Filament Characteristics If (A) (S)3.0 (B)4.5
Uf (V) (S)4.5±0.5 (B)6.8± 0.5
Outlook Dimension φ(mm) 50
L(mm) 192
Beam Angle Axial 45°
Horizontal  110°
Country of Origin   China
* CT05 tube has two filaments for getting small focal spot or big focal spot. (S) refer to small filament and (B) refer to big filament.
* Product Quality Guarantee Period: 12 months (1 year) after the date of sale.The tube could be replaced free of charge within guarantee period.
