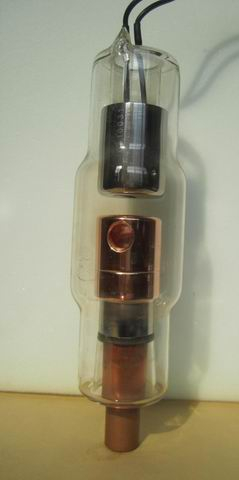

medical x-ray tube


Share to:
sharethis sharing button
  • Model: CT03
Category   Medical Tube
Description   Medical Diagnosis Tube
Model No.   CT03-3.5/100
Equipment Applied To   Medical Diagnostic X-ray Machine
Max Operating Voltage  kv  100
Nominal Focal Spot Value mm 2.6
Max Continuous Tube Current Ma 2
Max Moment Power  kw 3.5
Target Angle   19°
Filament Characteristics If (A) 4.5
Uf (V) 6.8±0.7
Outlook Dimension φ(mm) 50
L(mm) 178
Beam Angle Axial 40°
Horizontal  40°
Country of Origin   China
